氟化学制冷剂

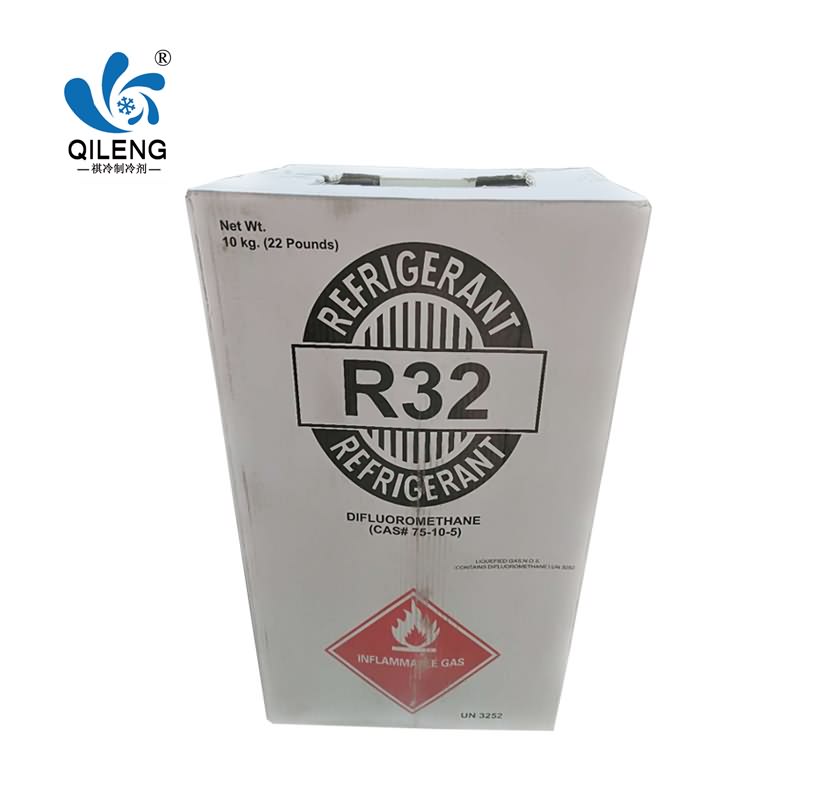

产品名称：二氟甲烷（R32）

分子式：CH2F2

CAS登录号：75-10-5

理化特性：

外观，嗅觉及状态：有轻微酯味的无色气体

分子量：52.02

沸点：(1个大气压)=-61.1℉（-51.7℃）

比重：（空气=1）1.85

冰点/熔点(1个大气压)：-213.0℉（-136.1℃）

蒸汽压(70℉/21.1℃)：206.3psig

气体密度（70℉/21.1℃,1个大气压下）：0.136 Ib/cuft

燃爆危险：易燃气体。

产品用途：

二氟甲烷是一种拥有零臭氧损耗潜势的冷却剂，常用作制冷剂、干刻剂。二氟甲烷与五氟乙烷可生成一种恒沸混合物（称为R-410A），用作新冷却剂系统中氯氟碳化合物（亦称为Freon）的代替物，主要是替代 HCFC-22 ，作复配中低温混合制冷剂。

包装规格：

一次性钢瓶：21lb/9.5kg；可循环使用钢瓶：926L；槽车。

储存运输：

R32制冷剂钢瓶为带压容器，储存时应远离火种、热源、避免阳光直接曝晒，通常储放于阴凉、干燥和通风的仓库内;搬运时应轻装、轻卸，防止钢瓶以及阀门等附件破损。

Product Name: Difluoromethane (R32)

Molecular Formula: CH2F2

CAS No.: 75-10-5

Physical and Chemical Properties

Appearance, Odor and State: Colorless gas with a slight ester odor

Molecular Weight: 52.02

Boiling Point (1 atm): -61.1℉ (-51.7℃)

Specific Gravity (air=1): 1.85

Freezing Point / Melting Point (1 atm): -213.0℉ (-136.1℃)

Vapor Pressure (70℉/21.1℃): 206.3 psig

Gas Density (70℉/21.1℃, 1 atm): 0.136 Ib/cuft

Fire and Explosion Hazard: Flammable gas.

Product Applications

Difluoromethane is an ozone-depletion-free refrigerant, commonly used as a refrigerant and dry etching agent. It forms an azeotropic mixture with pentafluoroethane, known as R-410A. Serving as a replacement for CFCs (Freon) in new cooling systems, it is mainly used to substitute HCFC-22 as a blended medium-and-low temperature mixed refrigerant.

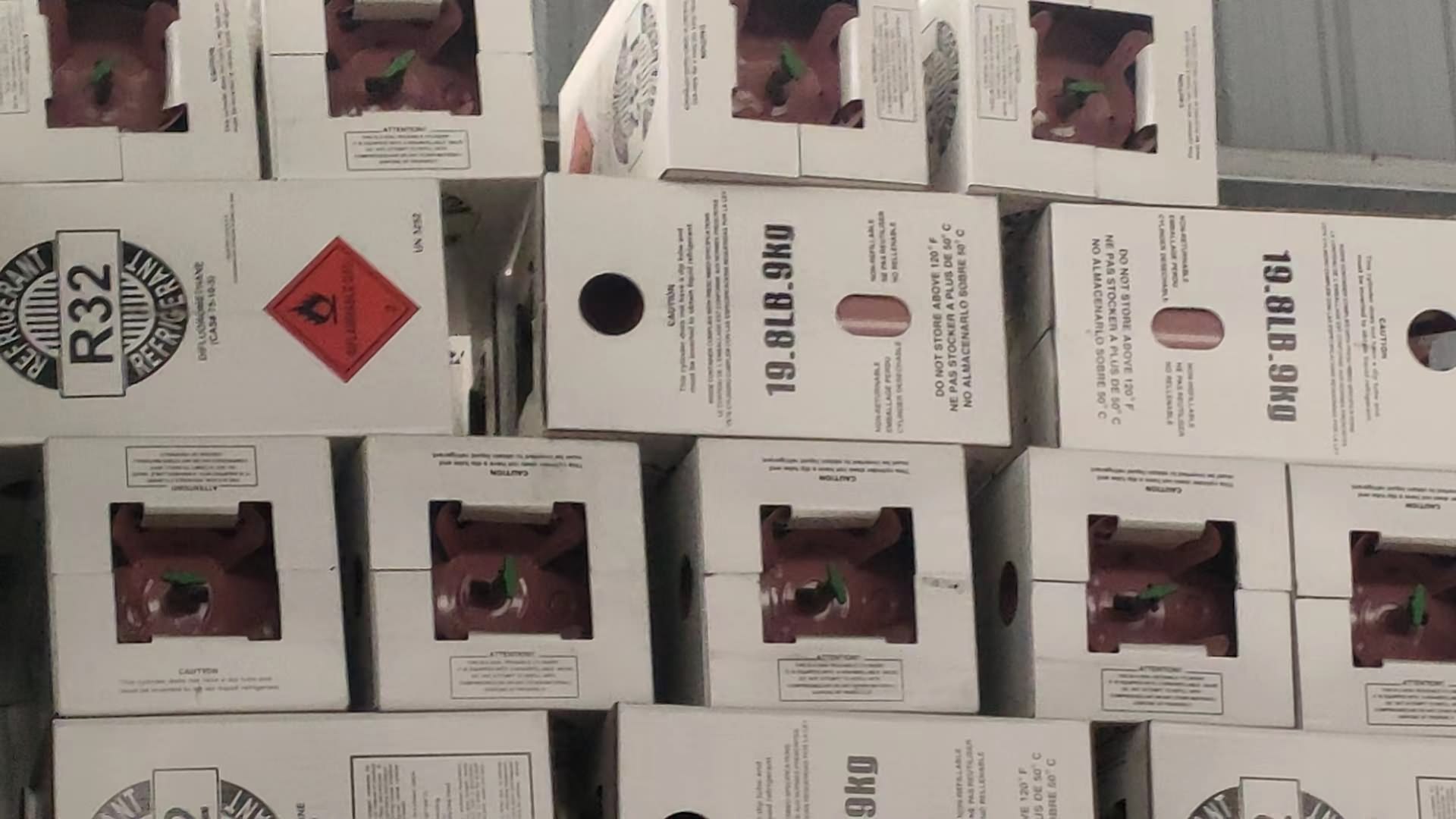

Packaging Specifications

Disposable Cylinder: 21lb/9.5kg

Recyclable Cylinder: 926L

Tank Truck

Storage and Transportation

R32 refrigerant cylinders are pressure vessels. Keep away from fire sources and heat during storage, and avoid direct sunlight. Normally store in a cool, dry and well-ventilated warehouse. Handle with care during loading, unloading and transportation to prevent damage to cylinders, valves and other accessories.
