产品名称：制冷剂R508B

化学成份：三氟甲烷（46%）/六氟乙烷（54%）

分子式：CHF3/ CF3CF3

CAS登录号：75-46-7/76-16-4

理 化 特 性：

外观与性状：无色，无异臭，不浑浊

分子量：95.39

沸点（℃）101.3Kpa：-87.4

临界温度（℃）： 14

临界压力（MPa）：3.93

临界密度（kg/m3）：568

液体比热30℃，[KJ/（Kg.℃）]：0.31

破坏臭氧潜能值（ODP）：0

燃爆危险：本品不燃。

产品用途：

R-508B主要用途R-508B（SUVA 95）作为广泛使用的超低温制冷剂，由于R-508B良好的综合性能，使其成为一种非常有效和安全的CFC-13（R13、R-13、Freon 13、氟利昂-13）、R-503和HFC-23（R23、R-23、Freon 23、氟利昂-23）的替代品，主要应用于环境试验箱/设备（冷热冲击试验机）、冻干机/冷冻干燥机、超低温冰箱或冷柜、血库冰箱、生化试验箱等深冷设备中（包括科研制冷、医用制冷等），多见用于这些复叠式制冷系统的低温级。R508B制冷温度可降至-80℃甚至更低，是符合工业标准的R-13，R-503和R-23的长期替代品，它完全适应R-503的工作环境。

包装规格：

可循环使用钢瓶：10L、30L、 926L。

储存运输：

R508B钢瓶为带压容器，储存时应远离火种、热源、避免阳光直接曝晒，通常储放于阴凉、干燥和通风的仓库内;搬运时应轻装、轻卸，防止钢瓶以及阀门等附件破损。

Product Name: Refrigerant R508B

Chemical Composition: Trifluoromethane (46%) / Hexafluoroethane (54%)

Molecular Formula: CHF3/ CF3CF3

CAS No.: 75-46-7/76-16-4

Physical and Chemical Properties

Appearance and Characteristics: Colorless, odorless and non-turbid

Molecular Weight: 95.39

Boiling Point (101.3kPa, ℃): -87.4

Critical Temperature (℃): 14

Critical Pressure (MPa): 3.93

Critical Density (kg/m³): 568

Liquid Specific Heat Capacity (30℃): 0.31 KJ/(Kg·℃)

Ozone Depletion Potential (ODP): 0

Flammability Risk: Non-flammable

Product Application

R508B (SUVA 95) is a widely used ultra-low temperature refrigerant. With excellent comprehensive performance, it serves as an efficient and safe substitute for CFC-13, R503 and HFC-23.It is mainly used in cryogenic equipment such as environmental test chambers (thermal shock test machines), freeze dryers, ultra-low temperature freezers, blood bank refrigerators and biochemical test chambers, covering scientific research refrigeration, medical refrigeration and other fields. It is commonly applied to the low-temperature stage of cascade refrigeration systems.

The refrigerating temperature of R508B can reach -80℃ or lower. It is a long-term replacement for R13, R503 and R23 in line with industrial standards, and fully adapts to the operating environment of R503.

Packaging Specifications

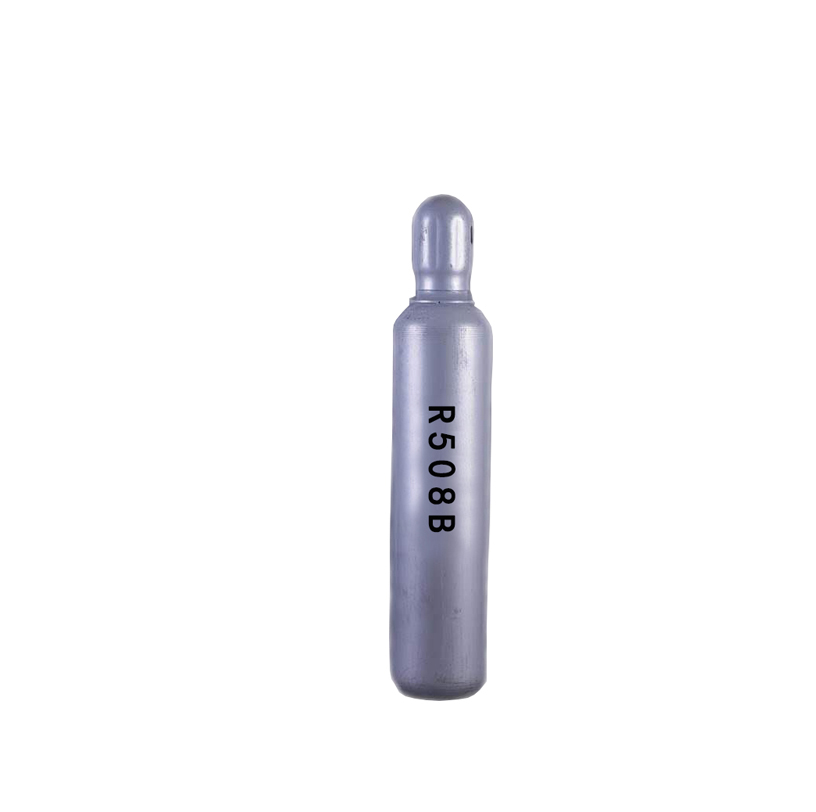

Recyclable cylinder:10L、30L、 926L.

Storage and Transportation

R508B cylinders are pressure vessels. Keep away from fire and heat sources and avoid direct sunlight during storage. It shall be stored in a cool, dry and well-ventilated warehouse. Handle with care during handling and transportation to prevent damage to cylinders, valves and other accessories.
